Ampere® Altra®
Servers

Perfect Datacenter Servers, the CyberServe range of Ampere® Altra® based computing platforms are designed for maximum efficiency per core at a low TCO.

Specially designed to meet the most demanding workload requirements for high-performance data centers and power-constrained edge environments. Configurable with up to 9TB DDR4 RAM and 256 processing cores based on aarch64.


CyberServe Altra AA1 110-4 NVMe

Broadberry Ampere Altra Max ARM Server - 1U, 10-Bay (6x 2.5" SATA, 4x 2.5" NVMe), Dual Ethernet, 650W 1+1 Redundant

Form Factor:
1U
Drive Bays:
Hot-Swap Drives
HDD Size:
2.5" Drives
Qty Drives:
10
Drive Interface:
SATA
Server Processor:
Ampere Altra
Memory DIMMS:
16x 3200MHz
Features:
Full Height/Length Expansion, Redundant Power Supply - Standard
Max RAM Capacity:
2TB
Configure From: €4,295
Configure
CyberServe Altra AA1 208G

Broadberry Ampere Altra Max ARM Server - 2U, 8x SATA, Dual Ethernet, 800W 1+1 Redundant

Form Factor:
2U
Drive Bays:
Hot-Swap Drives
HDD Size:
2.5" Drives
Qty Drives:
8
Drive Interface:
SATA
Server Processor:
Ampere Altra
Memory DIMMS:
16x 3200MHz
Features:
Full Height/Length Expansion, Redundant Power Supply - Standard
Max RAM Capacity:
2TB
Configure From: €4,471
Configure
CyberServe Altra AA1 110-8 NVMe

Broadberry Ampere Altra Max ARM Server - 1U, 10-Bay (2x 2.5" SATA, 8x 2.5" NVMe), Dual Ethernet, 650W 1+1 Redundant

Form Factor:
1U
Drive Bays:
Hot-Swap Drives
HDD Size:
2.5" Drives
Qty Drives:
10
Drive Interface:
SATA
Server Processor:
Ampere Altra
Memory DIMMS:
16x 3200MHz
Features:
Full Height/Length Expansion, Redundant Power Supply - Standard
Max RAM Capacity:
2TB
Configure From: €4,780
Configure
CyberServe Altra AA1 212-4NVMe

Broadberry Ampere Altra Max ARM Server - 2U, 8x SATA, 4x NVMe, Dual Ethernet, 800W 1+1 Redundant

Form Factor:
2U
Drive Bays:
Hot-Swap Drives
HDD Size:
2.5" Drives
Qty Drives:
8
Drive Interface:
SATA
Server Processor:
Ampere Altra
Memory DIMMS:
16x 3200MHz
Features:
Full Height/Length Expansion, Redundant Power Supply - Standard
Max RAM Capacity:
4.1TB
Configure From: €8,023
Configure

Call a Broadberry Storage & Server Specialist Now: +49 89 1208 5600

Have a Broadberry Expert Contact You:

The CyberServe Altra® range of hyperscale cloud and edge computing servers deliver predictable performance, high scalability and power efficiency to meet the computing demands of our customers. These low powered servers offer best in class metrics on performance / watt and watts / core compared to AMD and Intel for the ultimate server solution for Cloud Service providers.

Powered by the latest Ampere Altra processor range, the CyberServe Altra range of computing platforms are designed for cloud native usages with their high core count, massive single threaded performance and consistent frequency.

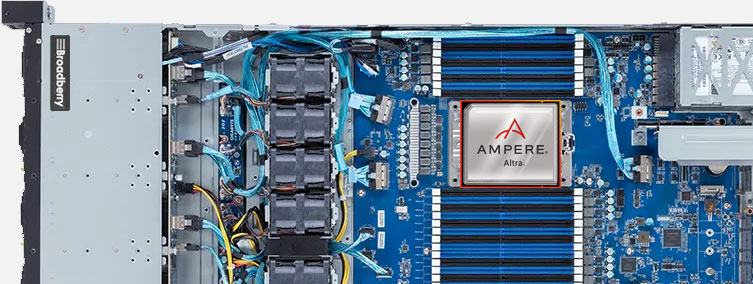

arm ampere-based rack server

CyberServe Altra Servers are Ideal for:

cyberserve atom server

Offering low TCO and predictable, high single threaded performance, the Broadberry CyberServe range of Ampere® Altra® based servers are ideal for these applications:

  • Cloud
  • Virtualisation
  • Edge Computing
  • Artificial Intelligence (AI)
cyberserve Ampere powered server solutions

Ampere Altra processors have been designed from the ground-up to meet the requirements of modern datacenters by ensuring predictable performance, high scalability and leading power efficiency. This, along with their high core density per rack translate directly into both Capex and Opex savings.

The Broadberry CyberServe Ampere range of rack servers drives efficiency into your datacenter infrastructure workloads such as data analytics, AI, database storage, telco stacks, edge computing and web hosting.

Ampere® Altra® Multi Core Server Processors are a complete System On Chip (SOC) solution built for Cloud Native workloads, supporting 128 lanes of high speed PCIe Gen4 and 8×72 ECC protected DDR4 3200 memory.

Up to 80 Armv8.2 cores with up to 3.3 GHz frequency.

Up to 128 Armv8.2 cores with up to 3.0 GHz frequency.

Processor Model Cores Base
Frequency
Max
Frequency
Mesh
Frequency
TDP
(W)
L2
Cache
L1
Cache
Ampere® Altra®
Ampere® Altra® Processor Q80-33 Q80-33 80 3.0 3.3 1.80 250 80 32
Ampere® Altra® Processor Q80-30 Q80-30 80 2.8 3.0 1.75 210 80 32
Ampere® Altra® Processor Q80-28 Q80-28 80 2.6 2.8 1.60 185 80 32
Ampere® Altra® Processor Q80-26 Q80-26 80 2.4 2.6 1.55 150 80 32
Ampere® Altra® Processor Q72-30 Q72-30 72 2.8 3.0 1.75 195 72 32
Ampere® Altra® Processor Q64-33 Q64-33 64 3.0 3.3 1.80 220 64 32
Ampere® Altra® Processor Q64-30 Q64-30 64 2.8 3.0 1.75 180 64 32
Ampere® Altra® Processor Q64-26 Q64-26 64 2.4 2.6 1.35 125 64 32
Ampere® Altra® Processor Q64-22 Q64-22 64 2.0 2.2 1.10 95 64 32
Ampere® Altra® Processor Q32-17 Q32-17 32 1.5 1.7 1.10 65 32 32
Ampere® Altra® Processor Q48-22 Q48-22 48 2.2 85 48
Ampere® Altra® Max
Ampere® Altra® Processor Max M128-30 M128-30 128 3.0 3.0 2.00 250 128 64
Ampere® Altra® Processor Max M96-30 M96-30 96 3.0 3.0 2.00 220 96 64

Predictable Performance

What sets our range of Ampere Altra based servers apart from our AMD or Intel based solutions is the elimination of the traditional "noisy neighbour challenge".

Ampere Altra processors are available with up to 80 single threaded cores running at up to 3.3GHz speed. Each of these cores gets a dedicated 64KB of L1 l-cache, 64KB L1 D-cache and a huge 1MB of L2 cache to ensure consistant and predictable performance.

Coherent mesh-based interconnect topology provides efficient bandwidth with 32 distributed home nodes and directory-based snoop filters to enable seamless connectivity between the cores.

Supporting eight, 2DPC, 72-bit DDR4-3200 channels, the Ampere Altra processor offers high bandwidth and memory capacity of up to 4TB per socket.

High Scalability

With leading power/core, and multi-socket support, Ampere Altra provides the scalability to maximise the number of servers per rack, unparalleled in the industry.

With 128 lanes of PCIe Gen4 per socket with support for 192 PCIe Gen4 lanes in 2P configuration that can be bifurcated down to x2, Ampere Altra provides maximum flexibility to interface with off-chip devices, including networking cards up to 100 GbE or more, and storage/NVMe devices, making it well suited for big data applications.

Power Efficiency

Ampere Altra provides industry-leading power efficiency/core, while packing 80 cores in a single-socket

and 160 cores in a dual-socket platform, establishing new levels of power efficiency with scalability.

Ampere's power optimised design, coupled with 7 nm process technology, enables the Ampere Altra processor to pack in more cores than any other datacenter class processor – all on a single die – enabling datacenter infrastructure providers more cores per rack.

Ampere Altra processor's advanced power management capabilities include Advanced Configuration Power Interface (ACPI) v6.2 support, Dynamic Frequency Scaling (DFS), on-die thermal monitoring, and dynamic power estimation

Reliability, Availability, and Serviceability (RAS)

The Ampere Altra processor provides extensive enterprise server-class RAS capabilities. Data in memory is protected with advanced ECC in addition to standard DDR4 RAS features. End-to-end data poisoning ensures corrupted data is tagged and any attempt to use it is flagged as an error. The SLC is also ECC protected, and the processor supports background scrubbing of the SLC cache and DRAM to locate and correct single-bit errors before they accumulate into uncorrectable errors

cyberserve atom inside

Processor Subsystem
  • 128 Arm® v8.2+ 64-bit CPU cores up to 3.00 GHz maximum
  • 64 KB L1 I-cache, 64 KB L1 D-cache per core
  • 1 MB L2 cache per core
  • 16 MB System Level Cache (SLC)
  • 2x full-width (128b) SIMD
  • Coherent Mesh Interconnect (CMI): ‒ Distributed snoop filtering
Memory
  • 8x 72-bit DDR4-3200 channels
  • SECDED ECC, Symbol-based ECC, and DDR4 RAS features
  • Up to 16 DIMMs and 4 TB/socket
System Resources
  • Full interrupt virtualization (GICv3)
  • Full I/O virtualization (SMMUv3)
  • Enterprise server-class RAS
Connectivity
  • 128 lanes of PCIe Gen4: ‒ 4 x16 PCIe + 4 x16 PCIe/CCIX controllers with Extended Speed Mode (ESM) support for data transfers at 20/25 GT/s ‒ 32 controllers to support up to 32 x4 links
  • 128 PCIe lanes in 1P configuration
  • 192 PCIe lanes in 2P configuration
  • Coherent multi-socket support
  • 4 x16 CCIX lanes
Technology and Functionality
  • Armv8.2+, SBSA Level 4
  • Advanced Power Management: ‒ Dynamic estimation, Voltage droop mitigation
