Supermicro SuperServer 2029BT-DNR SYS-2029BT-DNR

Two Nodes in a 2U Form Factor - IPMI 2.0 + KVM with Dedicated LAN, 12x Hot-swap 2.5" NVMe Drive Bays, Redundant Power Option.

  • Ideal for - Compute Intensive Application - HPC, Data Center, Enterprise Server - Hyperscale / Hyperconverged

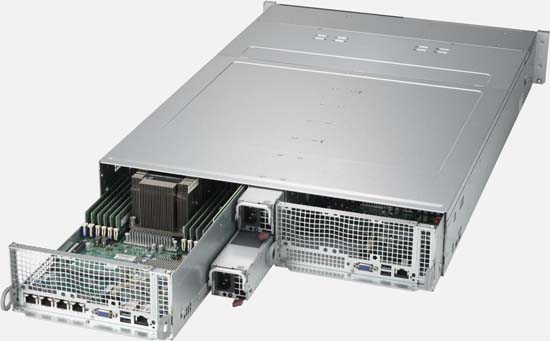

  • Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 3TB ECC 3DS RDIMM/LRDIMM, up to DDR4-2666MHz; 24 DIMM slots
  • 2 PCI-E 3.0 x8 slot, 1 PCI-E 3.0 x16, 1 SIOM card support (flexible networking) Note: must bundle with Network card
  • IPMI 2.0 + KVM with dedicated LAN

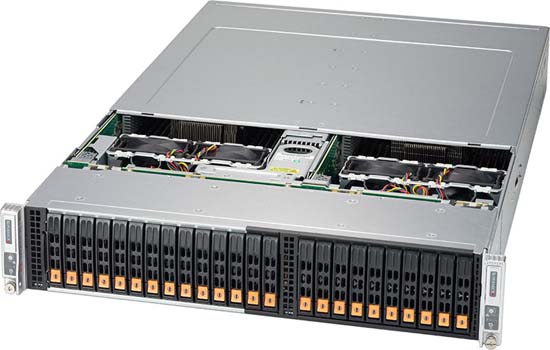

  • 12 Hot-swap 2.5" NVMe drive bays; 2 internal M.2 NVMe/SATA slots
  • Video via Aspeed AST2500 BMC
  • 4 Heavy duty 8cm PWM fans with air shroud
  • 2200W Redundant Power Supplies Titanium Level (96%)



Loading Configurator...

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 3TB of RAM

Equipable with up to a monstrous 3TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

2U Twin - 2 Servers in 2U

This 2U Twin delivers an innovative architecture where devices can be hot-swapped to allow for easier maintenance, to reduce/eliminate down time and to save space and energy.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 2029BT-DNR | SYS-2029BT-DNR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 2029BT-DNR | SYS-2029BT-DNR can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Features SIOM Network Card

This server features a SIOM network card. This network card delivers high performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


A 2U Supermicro SuperServer based on 4x Intel 2nd Gen Intel Xeon Scalable Processor (X11) range of processors, the Supermicro SuperServer 2029BT-DNR | SYS-2029BT-DNR is configurable with up to 0x Hot-Swap Drives drive bays, and designed for optimal performance with 48x 3200Mhz DDR4 memory sockets .

The Supermicro SuperServer 2029BT-DNR | SYS-2029BT-DNR supports the Intel Intel Xeon Scalable Processors 2nd Generation family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 2029BT-DNR | SYS-2029BT-DNR boasts 10 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 2029BT-DNR | SYS-2029BT-DNR Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: 2nd Gen Intel Xeon Scalable Processor (X11)
  • Range: HPC Supermicro BigTwin
  • High-Density Twin Servers: 2U Twin - 2 Servers in 2U
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 6.1TB
