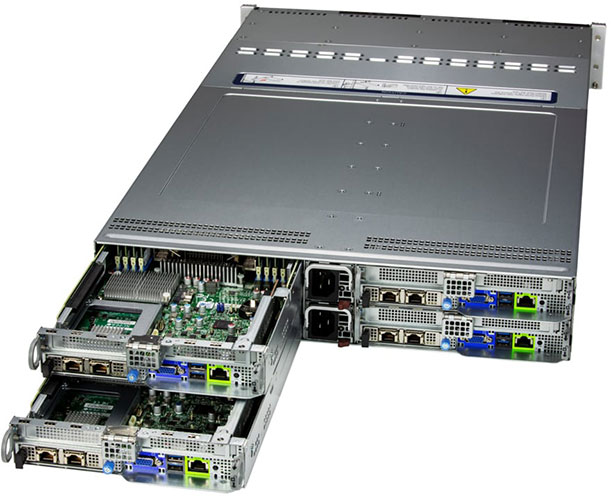

Supermicro BigTwin SuperServer 621BT-HNC8R | SYS-621BT-HNC8R®

Ideal for Hyperconverged Infrastructure, Container Storage and Scale-Out File Server. Quad Node 2U Form Factor. Redundant 3000W Power Supply, 3x 3.5"/2.5" hot-swap NVMe/SAS drive bays (Per Node)

  • Key Applications : Hyperconverged Infrastructure, Container Storage and Scale-Out File Server.
  • Dual 4th Gen Intel® Xeon® Scalable processors (LGA 4677)
  • Intel® C741 Chipset
  • Up to 16 DIMMs ECC DDR5 Slots
  • 2x PCIe 5.0 x16 (LP) slot
  • Tool-less support
  • Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard
  • Optional M.2 NVMe Boot Controller via SCC-A2NM2241G3-B1
  • Network connectivity via AIOM (OCP 3.0 compliant)

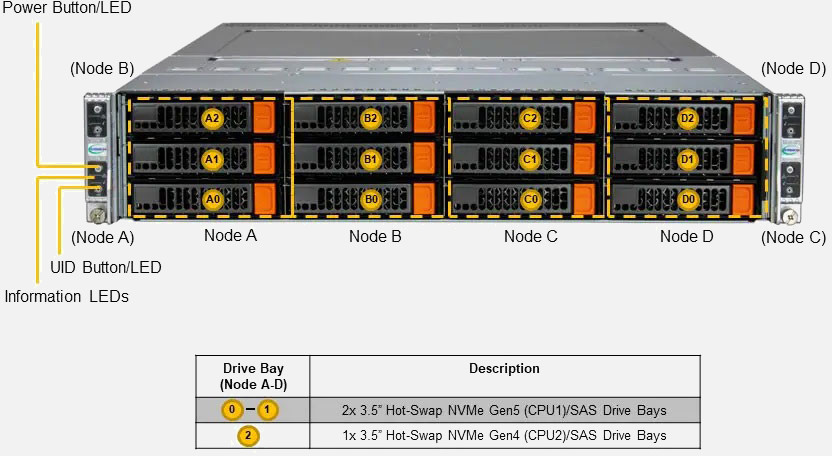

  • 3x hot-swap 3.5" drive bays (2x PCIe 5.0 NVMe/SAS and 1x PCIe 4.0 NVMe/SAS)
  • Built-in SAS3 Support via Broadcom 3808; IT Mode
  • 4x cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design
  • Liquid Cooling Support
  • 3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design



Loading Configurator...

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 4TB Of RAM

Equipable with up to an gigantic 4TB of RAM, which allows for fast and efficient multi-tasking for the most RAM intensive applications.

Hyperconverged Infrastructure Optimised

Optimised for hyperconverged infrastructure. Through leveraging hyperconverged infrastructure you can enjoy lower costs, increased performance and increased data protection.

2U Twin - 2 Servers in 2U

This 2U Twin delivers an innovative architecture where devices can be hot-swapped to allow for easier maintenance, to reduce/eliminate down time and to save space and energy.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro BigTwin SuperServer 621BT-HNC8R | SYS-621BT-HNC8R features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro BigTwin SuperServer 621BT-HNC8R | SYS-621BT-HNC8R with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.


A 2U Supermicro SuperServer based on 8x Intel 4th Gen Intel Xeon Scalable Processor (X13) range of processors, the Supermicro BigTwin SuperServer 621BT-HNC8R | SYS-621BT-HNC8R is configurable with up to 12x Hot-Swap Drives drive bays, and designed for optimal performance with 64x 4800Mhz DDR5 memory sockets .

The Supermicro BigTwin SuperServer 621BT-HNC8R | SYS-621BT-HNC8R supports the Intel Intel Xeon Scalable Processors 4th Generation family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro BigTwin SuperServer 621BT-HNC8R | SYS-621BT-HNC8R boasts 8 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro BigTwin SuperServer 621BT-HNC8R | SYS-621BT-HNC8R Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: 4th Gen Intel Xeon Scalable Processor (X13)
  • Range: Hyperconverged Infrastructure Supermicro BigTwin
  • High-Density Twin Servers: 2U Twin - 2 Servers in 2U
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 8.2TB
