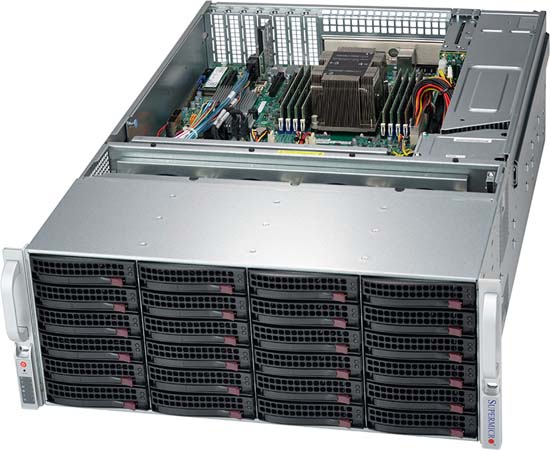

Supermicro SuperStorage 5049P-E1CTR36L SSG-5049P-E1CTR36L

Database Processing & Storage Appliance Platform. 2x 10GBase-T with Intel X557, 36x Hot-swap 3.5" SAS/SATA Drive Bays. Redundant Power Option.

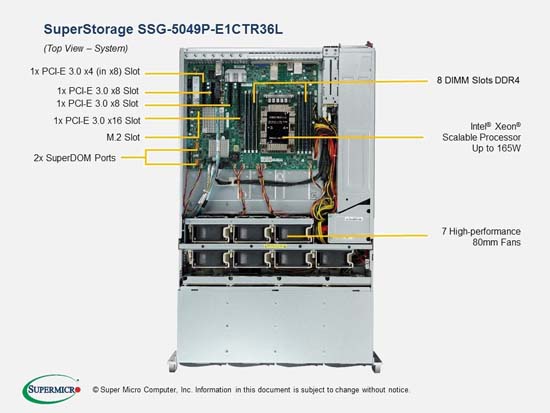

  • Connectivity/Storage Compute Nodes
  • Database Processing & Storage Appliance Platform
  • Single Socket P (LGA 3647) supports 2nd Gen. Intel Xeon Scalable processor (Cascade Lake/Skylake)‡
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2x 10GBase-T with Intel X557
  • 36 Hot-swap 3.5" SAS/SATA drive bays with SES3 (24 front + 12 rear); 4 Internal fixed 2.5" drive bays 2 Hot-swap 2.5" NVMe/SATA (rear, optional)
  • SAS3 via Broadcom 3008 controller
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 7 High-performance 8cm PWM fans
  • 1200W Redundant Power Supplies Titanium Level (96%)



Loading Configurator...

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Single Processor

Designed for server applications where multi processors are not required. Single processors are an affordable, cost-effective and reliable option.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Configure With Hot-Swap Drives

The Supermicro SSG-5049P-E1CTR36L SuperStorage | 5049P-E1CTR36L features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SSG-5049P-E1CTR36L SuperStorage | 5049P-E1CTR36L with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Dual 10GBase-T LAN ports via Intel X722

Featuring a Dual 10GBase-T LAN network adapter, which delivers high performance. This server is not vendor locked and features wide ranging hardware compatibility.


A 4U Supermicro SuperServer based on 1x Intel 2nd Gen Intel Xeon Scalable Processor (X11) range of processors, the Supermicro SSG-5049P-E1CTR36L SuperStorage | 5049P-E1CTR36L is configurable with up to 36x Hot-Swap Drives drive bays, and designed for optimal performance with 8x 3200Mhz DDR4 memory sockets .

The Supermicro SSG-5049P-E1CTR36L SuperStorage | 5049P-E1CTR36L supports the Intel Intel Xeon Scalable Processors 2nd Generation family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SSG-5049P-E1CTR36L SuperStorage | 5049P-E1CTR36L boasts 2 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SSG-5049P-E1CTR36L SuperStorage | 5049P-E1CTR36L Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: 2nd Gen Intel Xeon Scalable Processor (X11)
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 1TB
