Supermicro Twin SuperServer 120TP-DC8TR | SYS-120TP-DC8TR ®

Ideal for High Performance Computing, Big Data / Big Science and Hyper-Converged Infrastructure. Dual Node 1U Form Factor. Redundant 1000W Power Supply, 4x 2.5" hot-swap SATA drive bays (Per Node).

  • Key Applications : High Performance Computing, Big Data / Big Science and Hyper-Converged Infrastructure
  • Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:
  • Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  • Intel® C621A chipset
  • 16x DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
  • 1x PCIe 4.0 x16 (LP), 1x PCIe 4.0 x8 (with M.2 adapter installed for support 2x NVME up to 22x80 mm)
  • Intel® X710 Dual port 10GBase-T LAN onboard

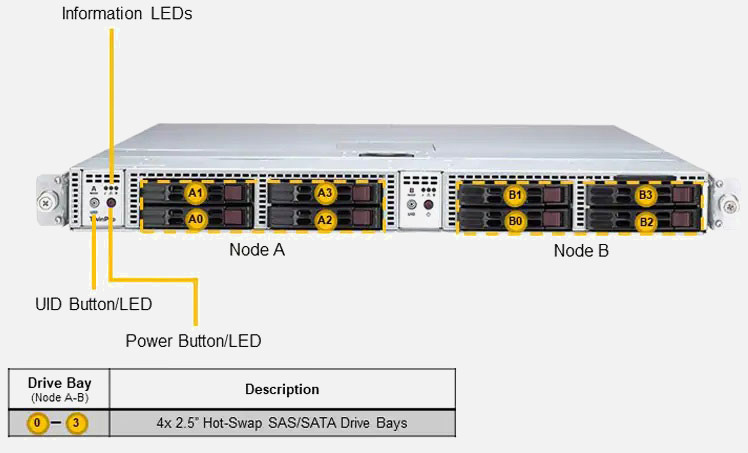

  • 4x 2.5" hot-swap SATA/SAS drive bays
  • 6x counter-rotating 4cm PWM fans with optimal fan speed control (Per System)
  • Two 1000W redundant power supplies with PMBus
  • ASPEED AST2600 BMC, 2x USB, VGA. RoT
  • Broadcom® 3808 SAS (12Gbps); 4x slots per node; HBA only, no RAID support.



Loading Configurator...

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Single Processor

Designed for server applications where multi processors are not required. Single processors are an affordable, cost-effective and reliable option.

Configure With Up to 4TB Of RAM

Equipable with up to an gigantic 4TB of RAM, which allows for fast and efficient multi-tasking for the most RAM intensive applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

1U Twin - 2 Servers in 1U

This server was designed to increase computing density while reducing cost, as well space and energy requirements. This 1U Twin supports Intel Xeon Scalable processors.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro Twin SuperServer 120TP-DC8TR | SYS-120TP-DC8TR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro Twin SuperServer 120TP-DC8TR | SYS-120TP-DC8TR can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.


A 1U Supermicro SuperServer based on 4x Intel 3rd Gen Intel Xeon Scalable Processor (X12) range of processors, the Supermicro Twin SuperServer 120TP-DC8TR | SYS-120TP-DC8TR is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 32x 3200Mhz DDR4 memory sockets .

The Supermicro Twin SuperServer 120TP-DC8TR | SYS-120TP-DC8TR supports the Intel Intel Xeon Scalable Processors 3rd Generation family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro Twin SuperServer 120TP-DC8TR | SYS-120TP-DC8TR boasts 4 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro Twin SuperServer 120TP-DC8TR | SYS-120TP-DC8TR Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: 3rd Gen Intel Xeon Scalable Processor (X12)
  • Range: HPC Supermicro Twin Servers
  • High-Density Twin Servers: 1U Twin - 2 Servers in 1U
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 4.1TB
